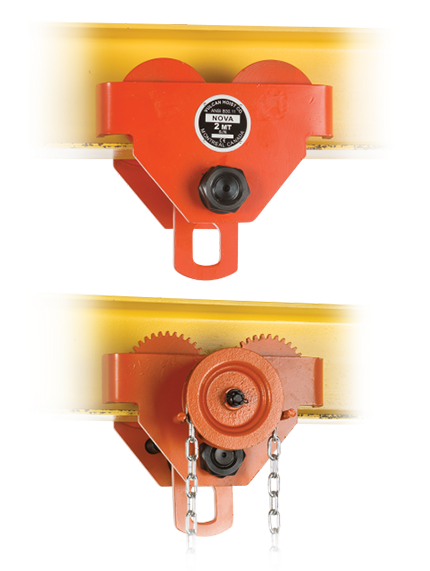

Nova Extended Gear Trolley - 5 Ton - 10 ft Hand Chain

Product Description

The Nova Extended Geared Trolley is a manually operated beam trolley designed for use with chain hoists in overhead material handling applications. The extended configuration provides increased hook clearance and greater headroom between the trolley beam and the load hook, making it well suited for installations where standard trolleys would otherwise limit usable lift height. The geared hand chain drive allows the operator to traverse loads horizontally along the beam flange with controlled, precise movement without requiring electrical power or external drive systems.

Constructed for demanding industrial environments, the Nova Geared Trolley Extended is built to handle a working load limit of 5 Ton and is compatible with a wide range of I-beam flange widths, with adjustment achieved through the addition or removal of spacer plates. The 10 ft hand chain provides sufficient reach for the operator to traverse the trolley from floor level without needing elevated access. The extended design is particularly valuable in low-headroom facilities where maximizing the distance between the beam and the hook is critical to operational efficiency.

This trolley is intended for use in manufacturing plants, warehouses, fabrication shops, maintenance bays, and other industrial facilities requiring reliable horizontal load movement. It pairs directly with chain hoists of matching capacity and is designed to be mounted and adjusted without specialized tooling. The geared drive mechanism ensures smooth, consistent travel along the beam and allows the operator to hold a load in position without drift, providing a safe and controlled material handling solution.

Material: Steel construction Hand chain included

Compatible With: Chain hoists up to 5 Ton capacity Standard I-beam flanges (adjustable via spacer plates)

Uses: Horizontal load traversing in overhead crane systems Pairing with chain hoists in manufacturing and warehouse environments Low-headroom installations requiring extended hook clearance Maintenance, assembly, and fabrication operations

Key Features: 5 Ton working load limit Extended configuration for increased hook clearance and headroom 10 ft hand chain for floor-level operation Geared drive for controlled, drift-free horizontal travel Adjustable beam flange width via spacer plates No electrical power required

Note: Confirm compatible beam flange width range before installation. The extended configuration is specifically designed to maximize usable lift height in applications where headroom is limited.
