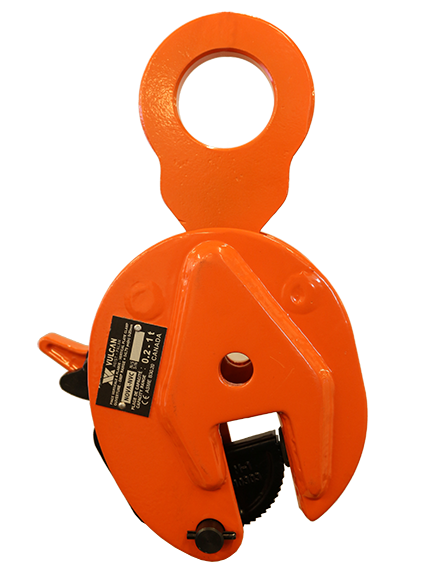

The Nova Vertical Plate Lifting Clamp is a steel plate clamp designed for the vertical lifting and handling of flat steel plates, structural steel, and similar flat materials. The clamp attaches to the edge of a plate and orients the load vertically during the lift, making it well suited for moving plate stock from horizontal storage into vertical working positions, or for transporting plate in a vertical orientation through a facility. The clamping mechanism engages the plate edge securely under load, with grip force increasing as the load weight increases, providing a self-locking action that maintains a secure hold throughout the lift.
Rated to a working load limit of 1 Ton, this clamp features a jaw opening range of 0 to 0.79 inches, accommodating a range of plate thicknesses within that span. It is designed for use on materials with a maximum hardness of 30 HRC (285 HV or 300 HB), covering the majority of standard structural and mild steel plate applications. A minimum working load of 20% of the maximum WLL must be maintained during use to ensure the clamping mechanism remains properly engaged and the load is held securely throughout the operation.
Nova Vertical Plate Lifting Clamps are suited for use in steel service centers, fabrication shops, shipyards, construction sites, and heavy industrial environments where plate needs to be lifted, repositioned, or transported in a vertical orientation. The clamp is designed to be attached and released without specialized tooling and provides a reliable, controlled method for single-clamp vertical plate handling when used with appropriate overhead lifting equipment of matching or greater capacity.
Material: Steel construction
Compatible With: Flat steel plate and structural steel within jaw opening range Overhead hoists, cranes, and lifting equipment rated to 1 Ton or greater Materials with maximum hardness of 30 HRC (285 HV or 300 HB)
Uses: Vertical lifting and handling of flat steel plate Repositioning plate from horizontal storage to vertical working orientation Steel service center and fabrication shop material handling Shipyard and heavy construction plate positioning
Key Features: 1 Ton working load limit Jaw opening range: 0 to 0.79 inches Maximum material hardness: 30 HRC (285 HV or 300 HB) Minimum working load: 20% of maximum WLL Self-locking clamping action increases grip under load Single-clamp vertical plate lifting configuration
Note: This clamp is designed for vertical lifting only. Do not use for horizontal lifting applications. Always ensure the overhead lifting equipment is rated to the full working load limit of the clamp before use.
