HOIST 115V 1T 15 LIFT 7FPM

Description du produit

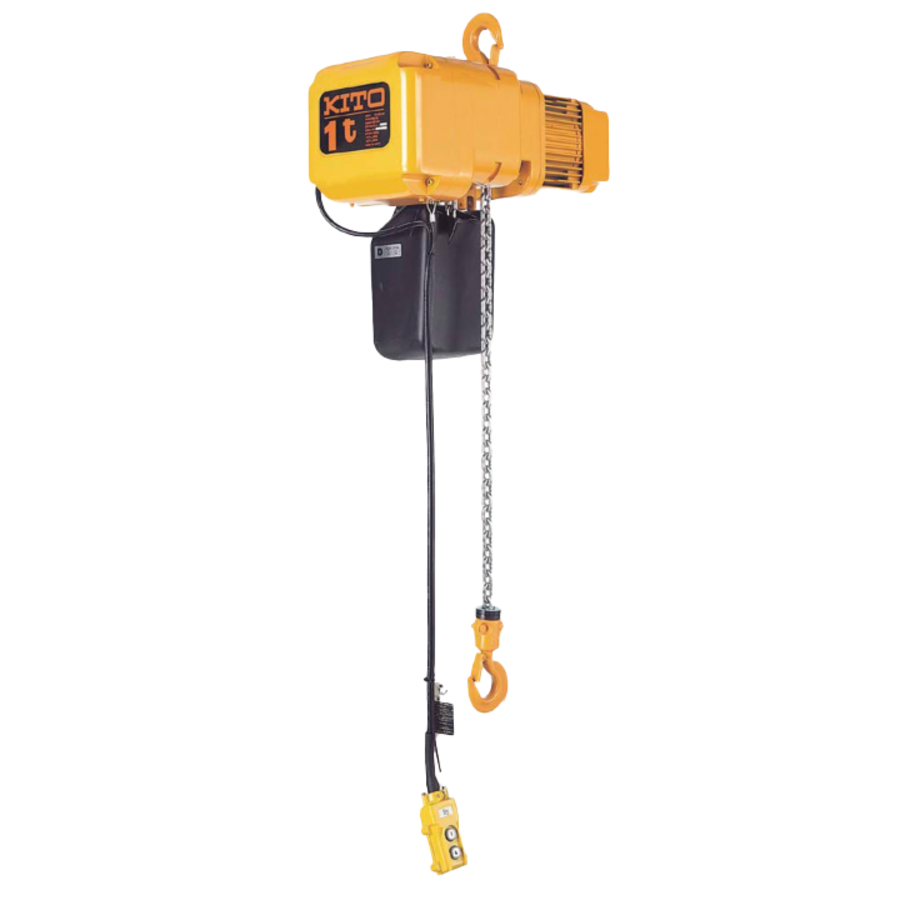

The Kito Electric Chain Hoist is a reliable and efficient electrically operated lifting tool designed for industrial and commercial applications requiring powered overhead lifting with consistent speed and control. With a 1 Ton rated capacity, 15 ft of lift, and a lift speed of 7 FPM, this hoist is well suited for manufacturing, assembly, maintenance, warehousing, and general material handling operations where manual hoisting is impractical or where production efficiency demands a powered lifting solution. The hook mount suspension allows for quick and flexible installation on beams, trolleys, and other overhead structures.

This hoist operates on a 115V single-phase power supply and draws 16.9 amps at full load, making electrical circuit capacity and wiring gauge verification essential before installation. The 115V configuration is particularly practical for facilities where three-phase power is unavailable or where a standard single-phase circuit is the most accessible power source. A dedicated circuit rated for the full amperage draw is recommended to ensure safe and reliable operation and to prevent nuisance tripping during hoist startup, which can draw higher inrush current than the rated running amperage.

The electric drive mechanism provides smooth and consistent load movement at a controlled 7 FPM lift speed, reducing operator fatigue compared to manual chain hoists and improving throughput in repetitive lifting applications. The hook mount configuration allows this hoist to be paired with compatible electric or manual trolleys for horizontal load travel, expanding its versatility across a range of overhead material handling setups. Pendant control is standard on Kito electric chain hoists, allowing the operator to maintain safe positioning away from the load during lifting and lowering operations.

Material: Alloy steel load chain Steel hoist body and motor housing Steel upper hook and lower load hook

Compatible With: Compatible Kito electric trolleys and manual push trolleys Kito replacement load chain for applicable electric hoist series Standard rigging hardware and shackles

Uses: Powered overhead lifting in manufacturing and assembly Maintenance and equipment positioning Warehousing and material handling Repetitive lifting applications requiring consistent speed Facilities with 115V single-phase power supply

Key Features: 1 Ton (1,000 kg) rated capacity 15 ft standard lift height 7 FPM lift speed 115V single-phase power supply 16.9 amp full load current draw Hook mount suspension for flexible installation Pendant control for safe operator positioning Compatible with electric and manual trolleys

Note: A dedicated electrical circuit rated for 16.9 amps is recommended. Verify circuit capacity, wiring gauge, and breaker rating before installation. Inrush current at startup may exceed running amperage — consult a qualified electrician if required.
