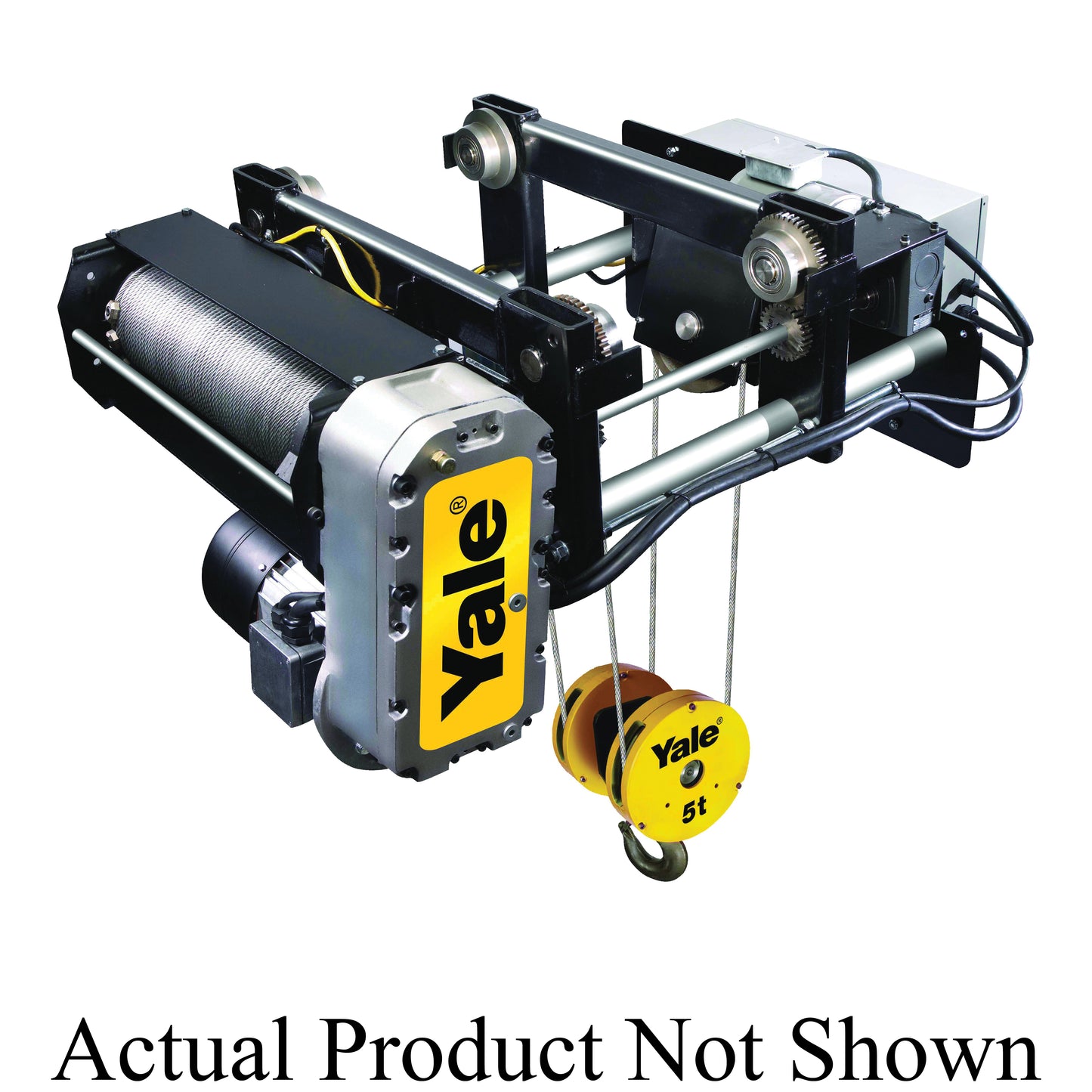

Yale Monorail Electric Wire Rope Hoist - 5 Ton 25 ft Lift 20/5 FPM 2-Speed 115/460 VAC

Product Description

The Yale Monorail Electric Wire Rope Hoist combines powered vertical lifting with motorized horizontal trolley travel for efficient movement along a compatible overhead beam. The configurations shown range from 3 Ton to 10 Ton capacities and provide lifting heights of 20 or 25 ft. Two-speed hoist operation offers 20 FPM high-speed lifting and 5 FPM low-speed positioning.

The integrated motorized trolley provides two-speed horizontal travel for transporting suspended loads between work areas. Depending on the selected model, trolley speeds are 50/17 or 55/18 FPM. This combination of fast travel and reduced positioning speed supports efficient material movement while allowing greater control when approaching the final load location.

A heavy-duty DC disc brake provides controlled stopping and dependable load holding. The industrial wire-rope lifting system, pushbutton-operated controls and integrated monorail configuration make these hoists suitable for production, maintenance and material-handling applications requiring powered lifting and beam travel.

Material:
Steel supporting frame
Steel wire rope
Machined steel rope drum
Steel trolley components
Enclosed steel lower block
Forged steel load hook

Compatible With:
Properly rated monorail beams
Approved overhead supporting structures
Electrical service matching the selected voltage
Compatible runway and beam-flange dimensions
Manufacturer-approved wire rope and replacement components

Uses:
Industrial production lifting
Manufacturing and assembly operations
Overhead monorail material handling
Equipment installation and maintenance
Warehouse load movement
Transporting loads between workstations
Controlled positioning of heavy machinery and components

Key Features:
Integrated motorized monorail trolley
Two-speed 20/5 FPM hoist operation
Two-speed powered trolley travel
Heavy-duty DC disc brake
Pushbutton control
20 and 25 ft lifting-height options
3 Ton to 10 Ton capacity configurations
